23Q110 Silicon Steel

Silicon steel is divided into oriented silicon steel, non-oriented silicon steel these two categories. The magnetic properties of oriented silicon steel are strongly directional, with the lowest iron loss and the highest magnetic permeability in the rolling direction and high magnetic inductance in a certain magnetizing field. The silicon content of oriented silicon steel is about 3%, and requires that the oxide inclusion content in the steel is low, and must contain a certain inhibitor (MnS, A1N), because it is used for transformer core manufacturing, so it is also called cold-rolled transformer steel.

Classification :

Silicon Steel

Keywords :

Silicon Steel

WhatsApp : +8617391632933

E-mail :admin@jlccmetal.com

PRODUCT DETAILS

Silicon Steel
Type	Grade	Width	Max Core Loss @ P17/50	Lamination Factor(%)	Induction @ B8
Common Type	23Q110	900-1200mm	1.10w/kg	97	1.85T
	27Q120		120w/kc	97	1.85T
	30Q120		120w/ka	98	1.84T
High Induction Type	23QG085	900-1200mm	0.85w/kg	97	1.90T
	23QG090		090w/ka	97	1.90T
	23QG095		0.95w/kg	97	1.89T
	23QG100		1.00w/ko	97	1.89T
	27QG095		0.95w/kg	97	1.90T
	27QG100		1.00w/kg	97	1.90T
	30QG100		1.00w/kg	98	1.90T
	30QG105		1.05w/kg	98	1.89T
Domain Refined High Induction Type(Laser)	23R080	900-1200mm	080w/ko	97	1.89T
	23R085		085w/kc	97	1.897
	27R090		090w/ka	97	1.897
	27R095		0.95w/kg	97	1.89T

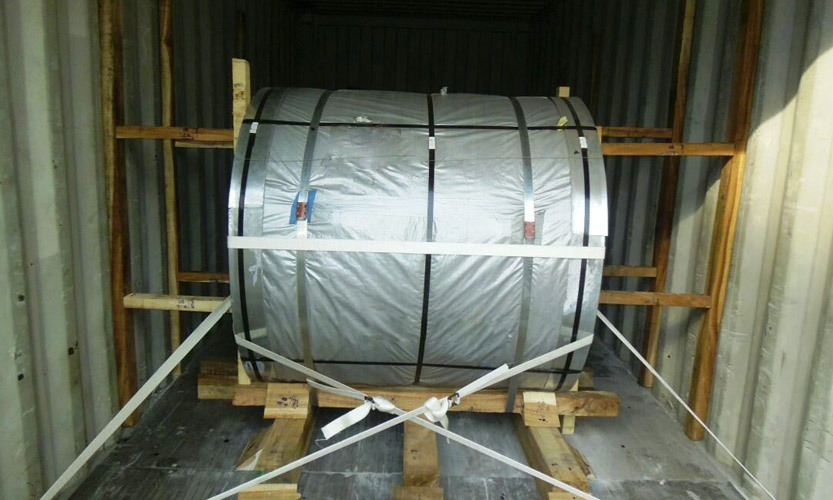

Packing And Delivery

The annual steel processing capacity is several million tons, and it is mainly engaged in the research and development, production and sales of stainless steel series, carbon steel series, aluminum series, copper series, galvanized, color coating, coil, seamless pipe, welded pipe, square pipe, torque pipe, round steel, angle steel, channel steel, I-beam, hexagonal Steel, square steel, flat steel, steel wire, welding rod, flange cutting parts and other stainless steel and high nickel alloy steel. for customers to purchase.

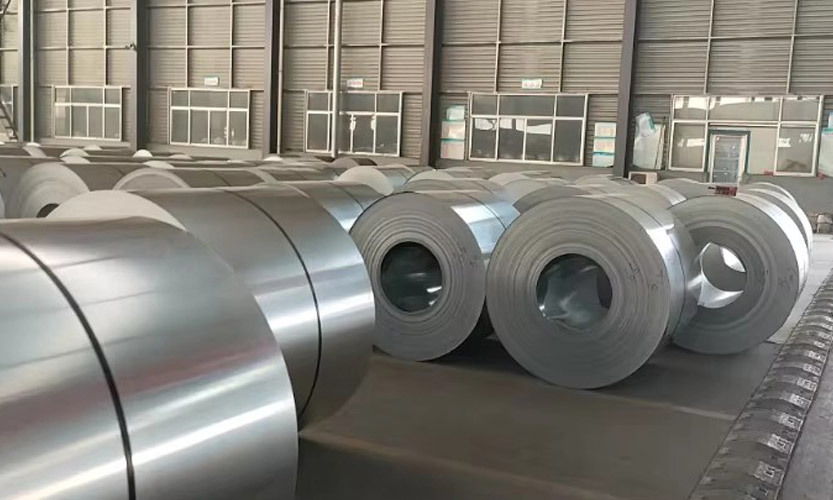

FACTORY

There are totally 5 factories,600 employees,50 production lines.Our factory covers an area of 80,000 square meters with advanced production equipment, a laboratory, independent R & D, and an innovation department.We have a whole producing& assembly line consisting of medium-frequency electric furnaces, spectrum analyzers, centrifugal molding, annealing, zinc spray, finishing, and packaging.

Facyory

Factory

Customer praise

With advanced production technology, strict quality control, and a customer-centric business philosophy, the company has established a solid reputation in both domestic and international markets. The products sell well all over the country and are exported to more than 100 countries such as the European Union, the United States, Australia, Southeast Asia, and the Middle East.

Customer Visit

HONOR

Our company has passed ISO9001 quality management system certification, Our Mill product with CE/EN10204 / ASTM/Classification society certificate/CASO etc. We welcome friends from all over the world to visit our factory at any time！
